The Linos system offers various styles of hand plates in two different profile thicknesses. Each plate can accept 1.5 mm, 2.0 mm, and 2.3 mm diameter smartDrive standard and multidirectional locking screws. An additional 1.2 mm diameter screw for osteosynthesis is also available.
The rounded atraumatic plate contour precisely embeds into surrounding soft tissue, preventing irritation and eliminating the need for plate bending. The various plating styles are color coded to easily identify the profile thickness:
Green: 0.8 mm profile thickness
Dark Gray: 1.2 mm profile thickness
Standard and variable angle locking smartDrive screws are available. All plates in the Linos System can integrate with any of the screws intended for plate fixation as needed for fracture treatment. Every screw is designed with an atraumatic screw tip and utilize a T-drive head.
The Linos instruments are designed to be simple, yet efficient. They are all color coded to their respective screw size for easy identification.

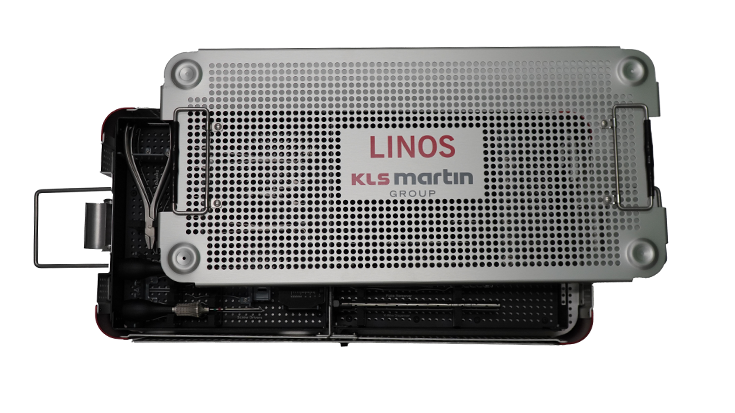

In designing the storage tray, our focus was to ensure easy handling and proper identification of each unique device. Everything from implants to instruments is included in one tray.
The Linos System is used for the treatment of fractures and reconstructive procedures on small bones and bone fragments as well as for arthrodeses of small joints, especially for
