IPS Implants® Orthognathics

IPS Implants® Orthognathics

Art. No. IPS Implants® Orthognathics

IPS Implants® Orthognathics

Item number	IPS Implants® Orthognathics
Single use product	Single-Use
Serial number guided	No

Article text	IPS Implants® Orthognathics
Planning process \| Feature and function	Orthognathic case planning with the KLS Martin planning software IPS CaseDesigner® Planning, fabrication, shipping from a single source Planning time 8 -9 working days Predetermination of screw positions Realization of diverse implant geometries Screw diameter selectable, Ø 1.5 mm by default, alternatively Ø 2.0 mm Simple and efficient interaction with the IPS® designer via the IPS Gate®
Planning process \| Benefit	Complete service with the requirement for coordinating multiple services eliminated High degree of safety in planning Maximum mobility, flexibility and functionality Save time with efficient case processing Virtual planning created by user builds basis for potential designing of guides and implants

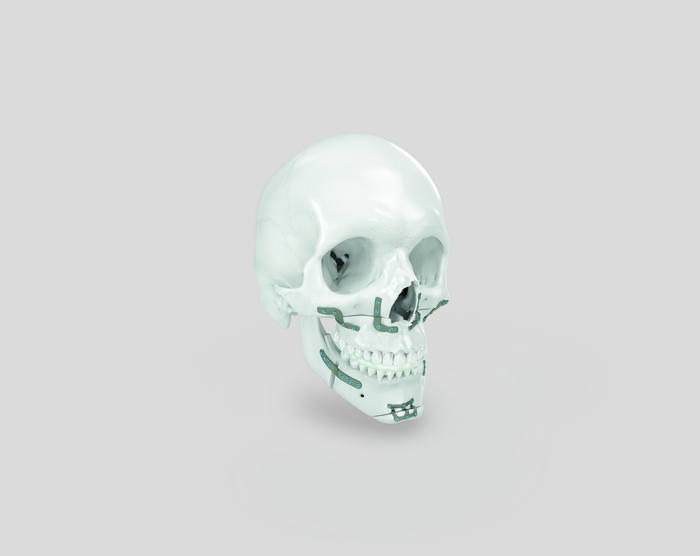

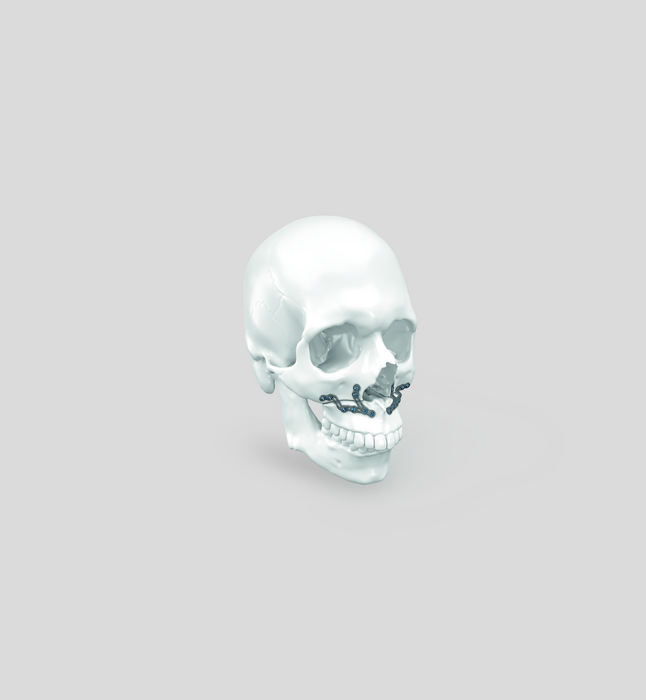

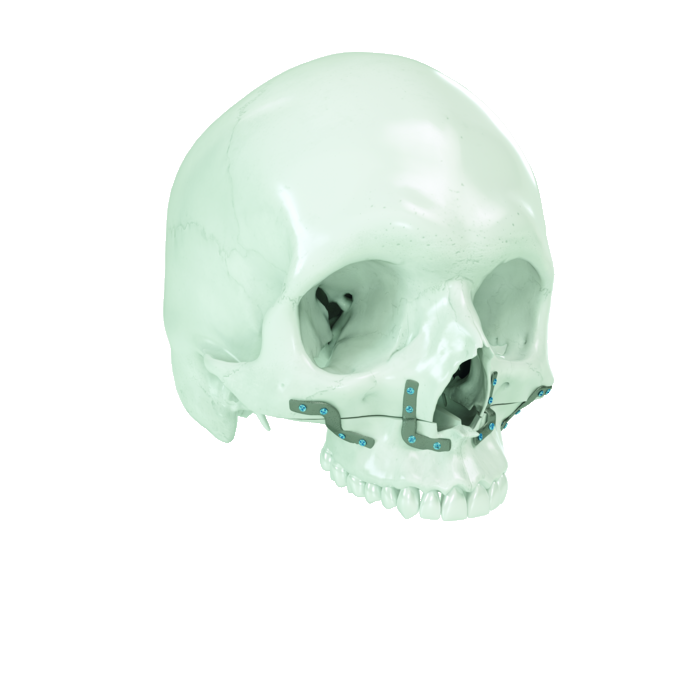

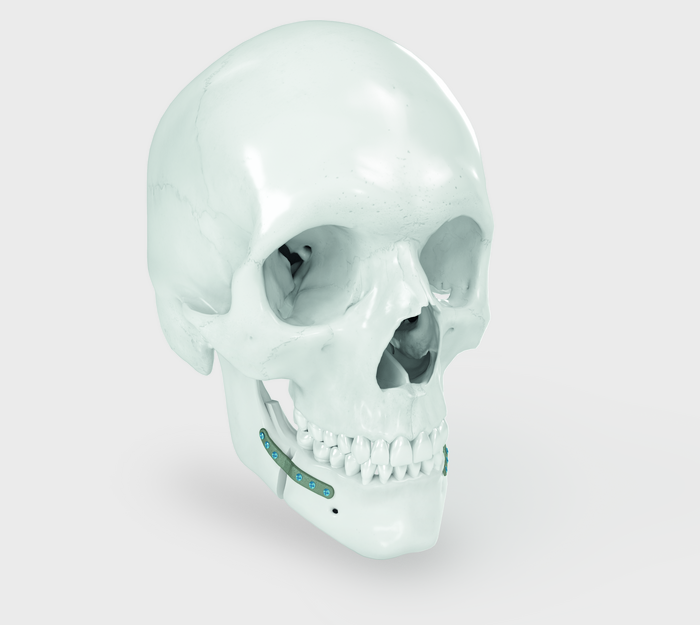

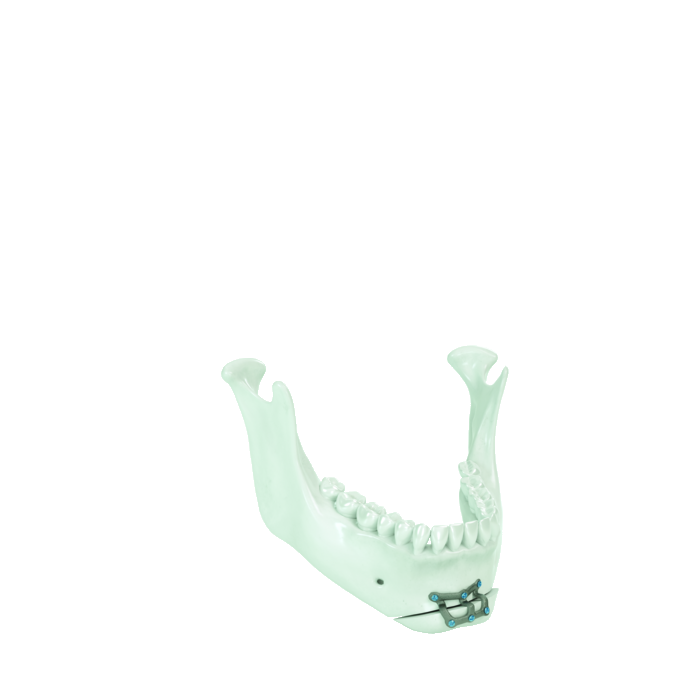

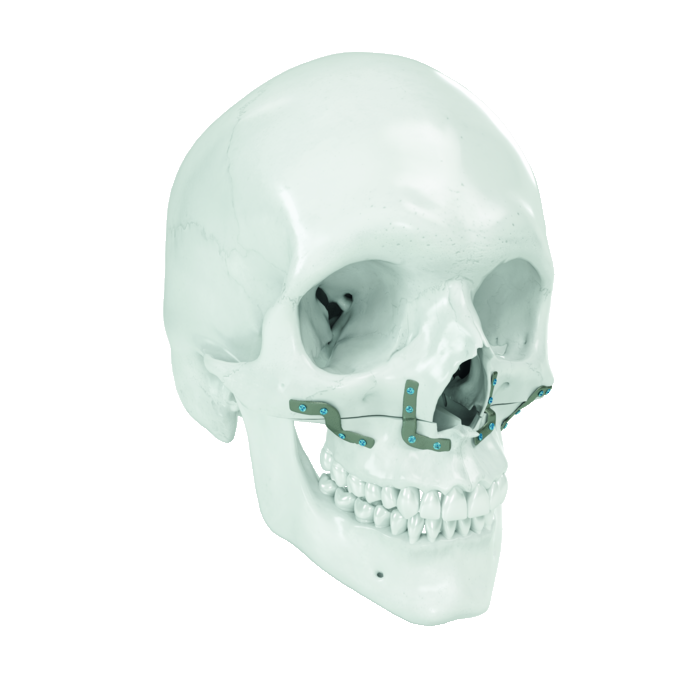

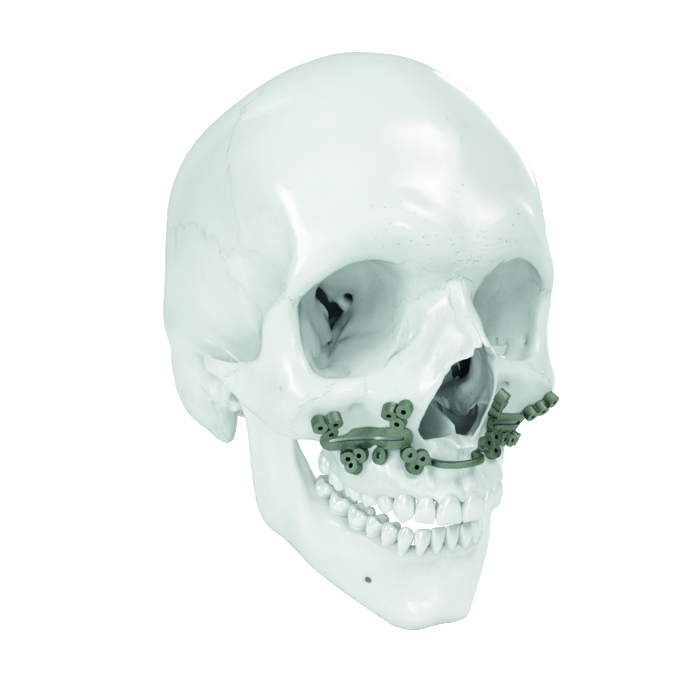

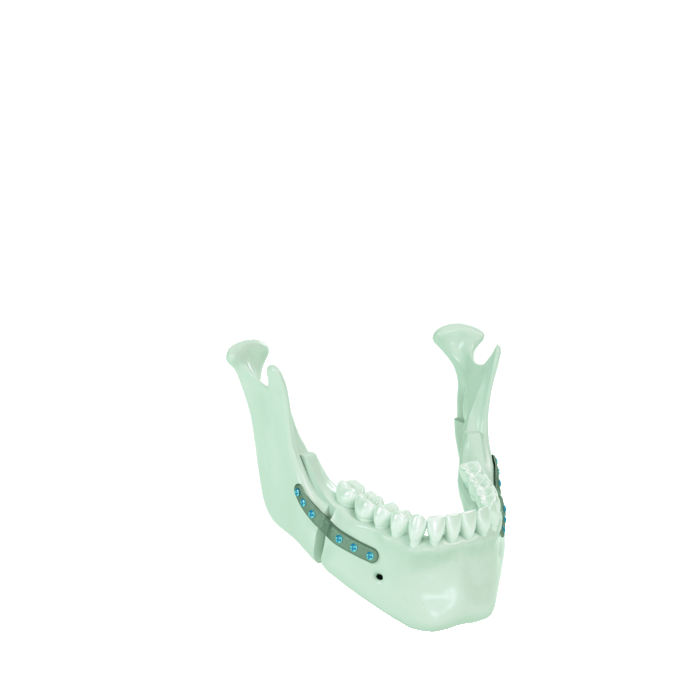

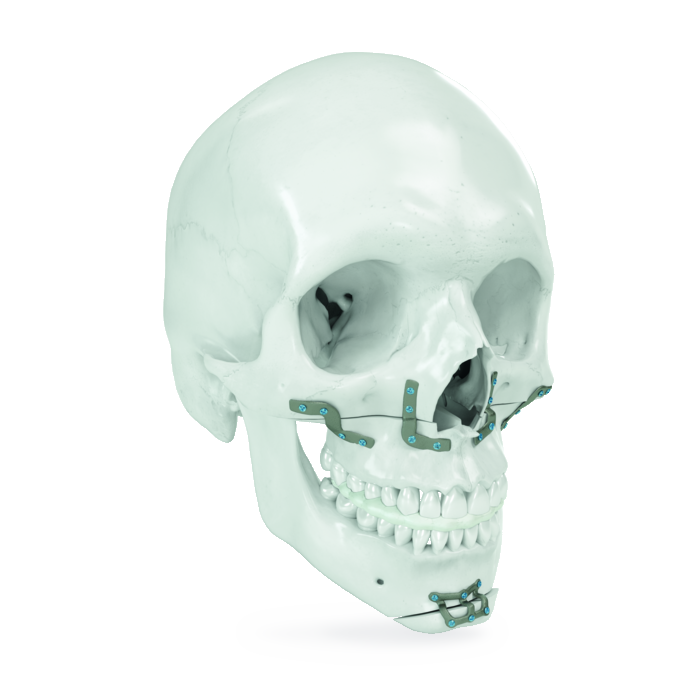

Implant \| Features and functions	Implant based on the patient's individual CT data, already checked in the factory for optimum accuracy of fit Manufactured as standard from high-strength Ti6Al4V titanium alloy Production using the latest additive manufacturing technology Various maxillary plate design options: classic multi-plate as well as pre-connected multi-plates and single-plate design featuring double-ridge bars between screw holes

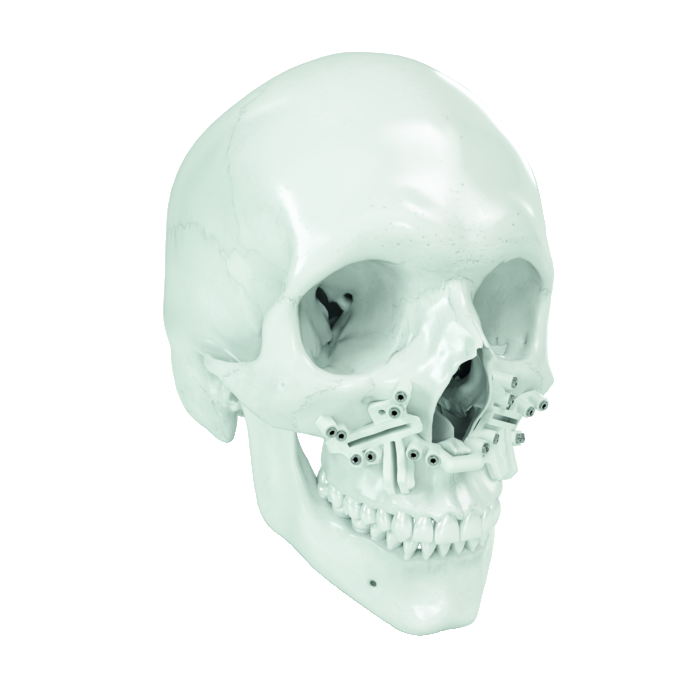

Drill, marking and saw guides \| Feature and function	Enables transfer of virtual planning to the OR Integrated steel sleeves Made of Polyamid or additive manufactured titanium alloy
Drill, marking and saw guides \| Benefit	Maximum safety with accurate determination of plate position and screw holes No need for additional drill guides Variability in planning options and high biocompatibility
Orthognathic splints \| Feature and function	Orthognathic splints made of acrylate/ methacrylate resins Various design options available
Orthognathic splints \| Benefit	High degree in flexibility e.g. for reinforced palatal support, wiring holes and further geometries Transparent and processible
Onlays \| Feature and function	marPOR: Ultra-high-molecular-weight Polyethylene, porous 3D interconnecting pore structure and delivered sterile Onlays for bone augmentation Onlays made from PEEK
Onlays \| Benefit	Allowing soft tissue ingrowth Can promote cell ingrowth, vascularization and osteointegration Correction and reconstruction of craniofacial defects Flexible and strong material Good drainage properties More rigid construction Ready-to-use

Brochures	90-452-02-04 IPS Implants® \| Orthognathics 90-244-02-05 IPS Implants® \| Scan protocol \| Orthognathics
Publications	Accuracy of patient-specific implants and additive-manufactured surgical splints in orthognathic surgery – A three-dimensional retrospective study 2019 Splintless orthognathic surgery - a novel technique using patient-specific implants (PSI) 2015 3D virtual planning in orthognathic surgery 2020

IPS Gate®	Link to the platform
IPS CaseDesigner®	Link to the software

Videos

Scan Protocol for Virtual Planning of Orthognathic Procedures | Plaster Dental Cast Workflow (DICOM)

Scan Protocol for Virtual Planning of Orthognathic Procedures | Plaster Dental Cast Workflow (DICOM)

IPS Implants® Orthognathics

IPS Implants® Orthognathics

These products match the selected product

25-407-03-04

Art. No. 25-407-03-04 Screwdriver handle, silicone, round, L

25-407-04-04

Art. No. 25-407-04-04 Screwdriver handle, silicone, flat, L

25-407-04-04

Art. No. 25-407-04-04 Screwdriver handle, silicone, flat, L

25-433-97-07

Art. No. 25-433-97-07 maxDrive®, screwdriver blade, Neuro, for screws with ø 1.5 mm , length 58 mm

25-452-03-91

Art. No. 25-452-03-91 Twist drill, J-notch, ø 1.1 mm, length 50 mm, stop 3.5 mm

25-452-07-71

Art. No. 25-452-07-71 Twist drill, J-notch, ø 1.5 mm, length 50 mm, stop 7 mm, sterile

25-452-09-07

Art. No. 25-452-09-07 Twist drill, J-notch, ø 1.1 mm, length 50 mm, stop 9 mm, pack of 5

25-489-97-07

Art. No. 25-489-97-07 maxDrive®, screwdriver blade, for screws with ø 1.5 mm, length 80 mm

Product group 1.5 mm, sterile

Product group 2.0 mm, sterile

Product group 1.5 mm, sterile

Product group 2.0 mm, sterile
