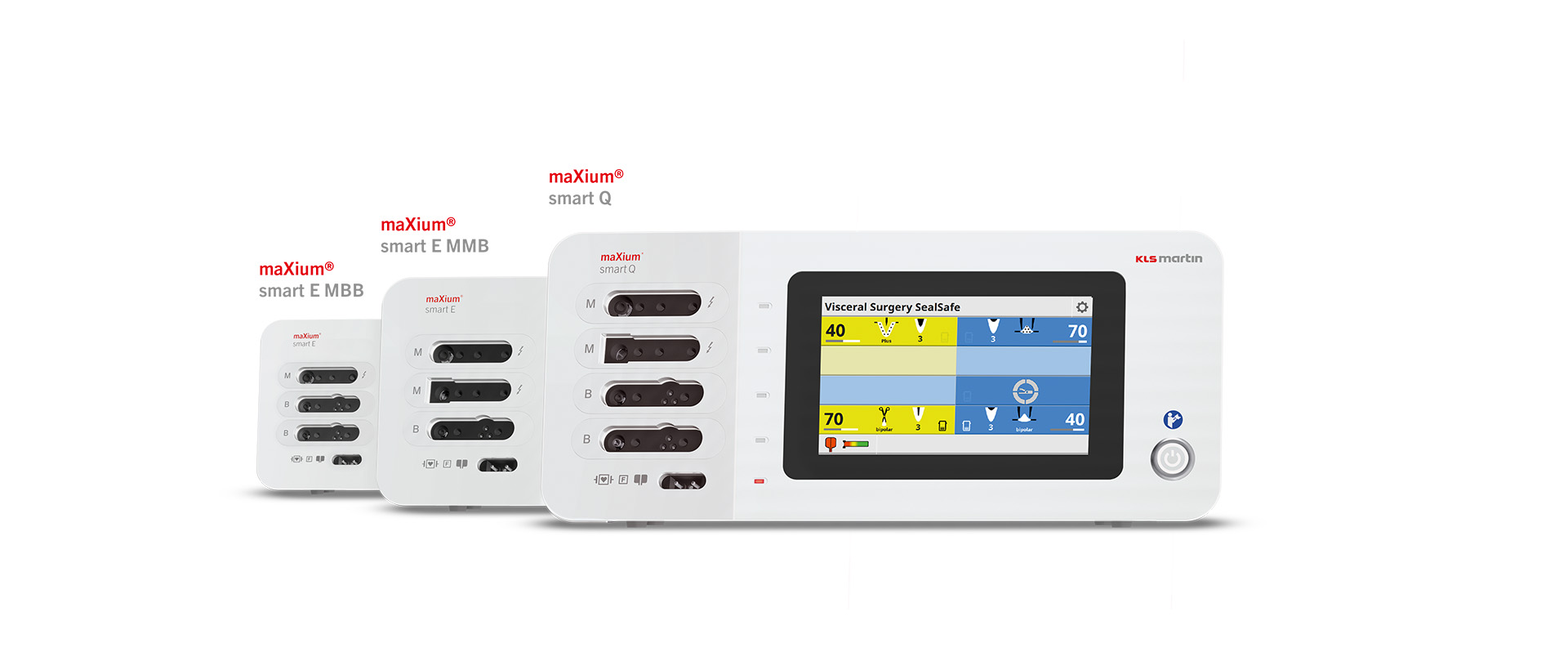

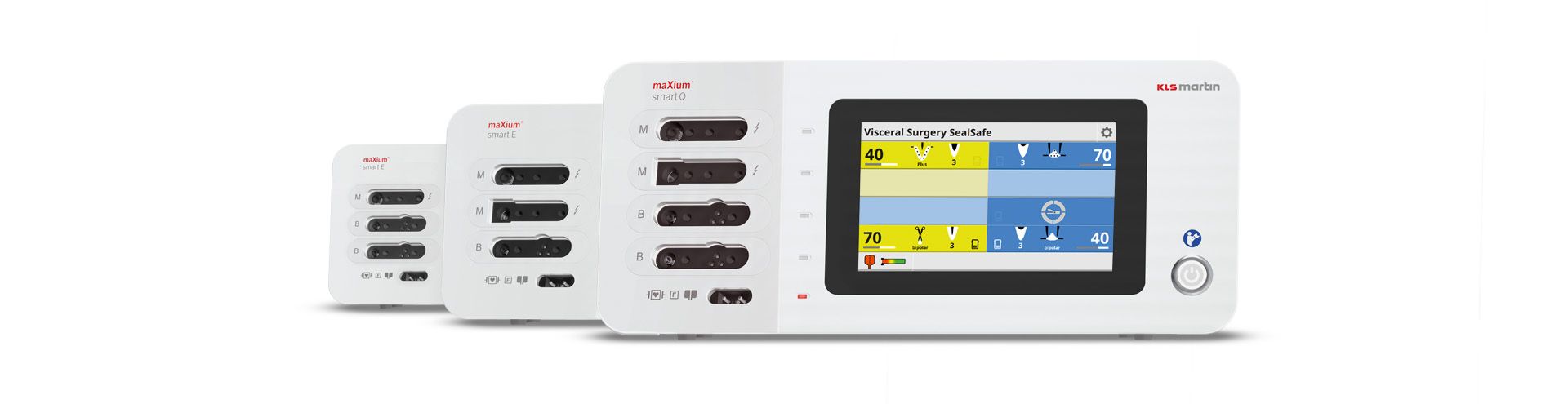

The new maXium® smart Q and maXium® smart E expand the smartLine product family with powerful new generators, providing the ideal solution for every requirement. These high-end systems deliver a wide selection of precisely controlled energy currents for a broad range of surgical applications.

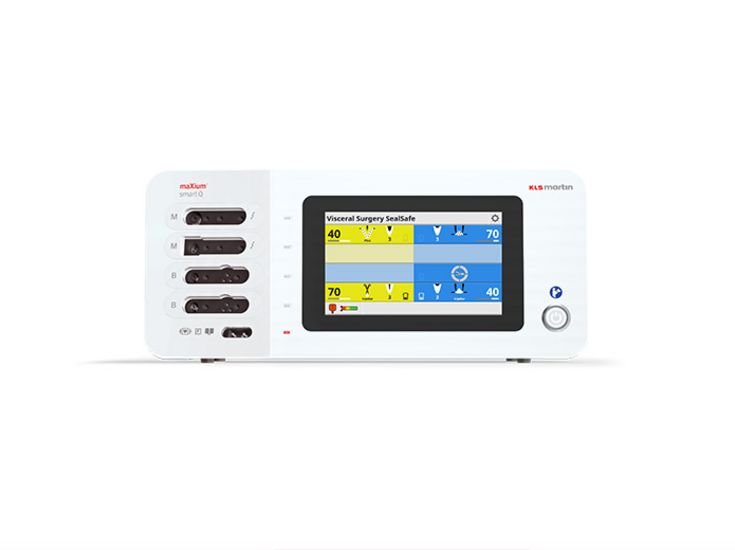

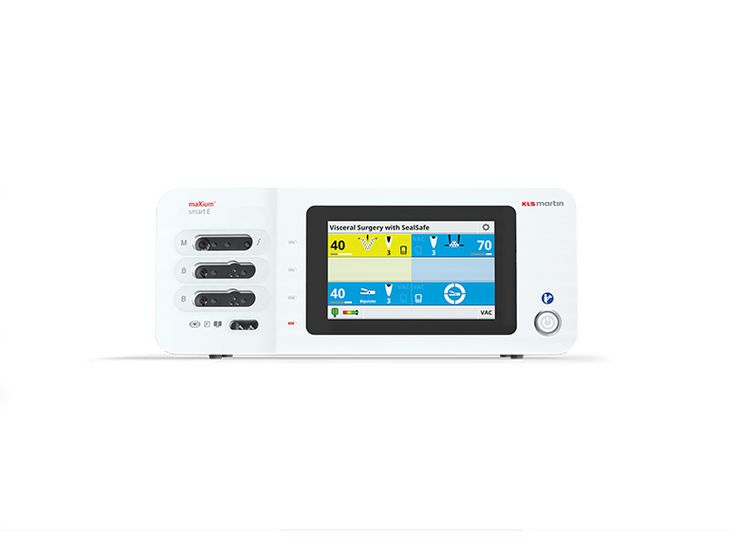

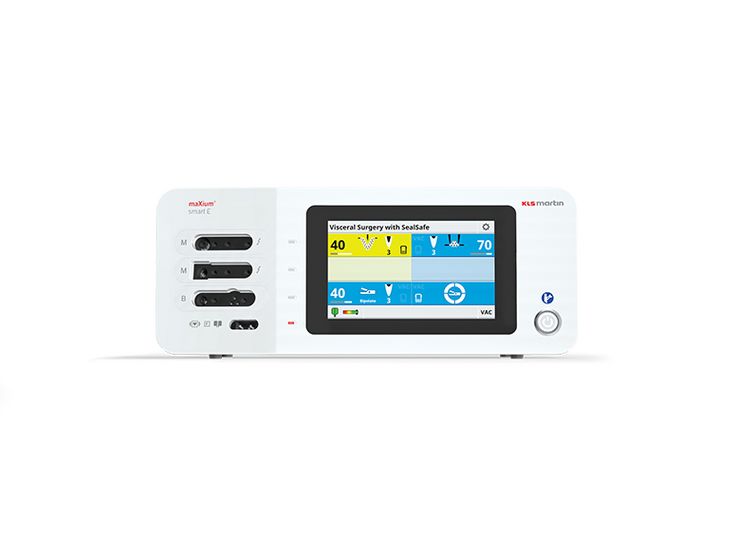

Three high-end units have been added to the smartLine family. The maXium® smart Q, offers two monopolar and two bipolar working channels. The maXium® smart E is available in two versions (MMB and MBB) and features a total of three working channels. A maXium® smart E unit offers up to two monopolar or two bipolar sockets. The three unit variants differ only in the number of sockets.
The maXium® smart Q and maXium® smart E combine userfriendliness, efficiency, and performance, ensuring optimal results through state-of-the-art sealing technology. Together with the KLS Martin SealSafe® IQ instruments, the units form a bipolar sealing system that transforms the body's own structural proteins, such as collagen and elastin, in such a manner that veins, arteries, and tissue bundles are permanently and securely sealed.

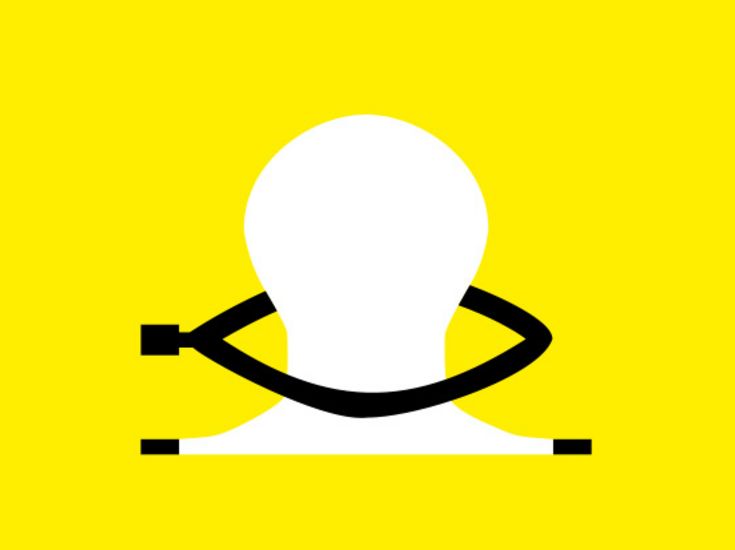

The Polyp, Papilla, and Mucosect current modes, which were developed specifically for gastroenterological applications, offer maximum precision and safety during endoscopic procedures. All three operate in pulses, enabling a controlled release of energy that is gentle on the tissue.
The duration and interval parameters can be set individually for all three current modes: A prolonged duration results in stronger and faster cuts. The interval controls the rhythm of energy output and influences the cutting frequency. This combination of pulsed current delivery and individually adjustable parameters enables safe, effective, and indication-specific application.

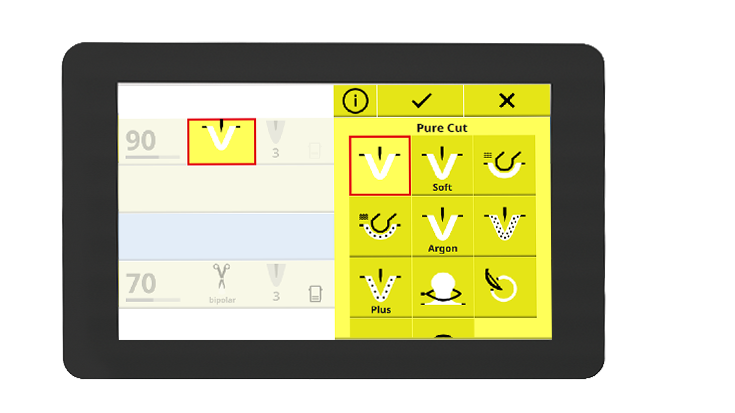

Current type: With the proven, clearly arranged icons, making selections is quick and easy.

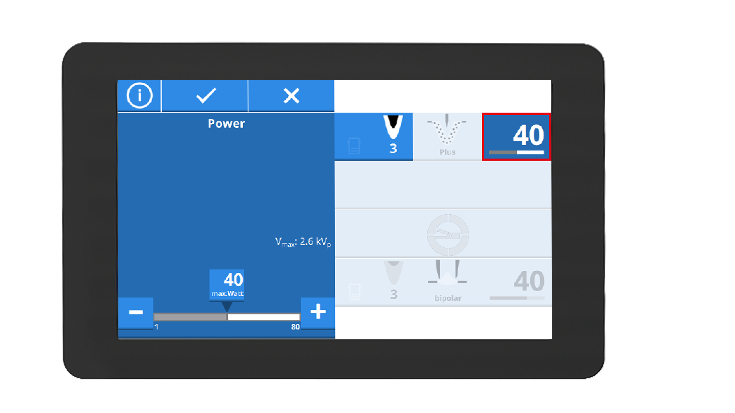

Output power adjustment: With the slider and/or the +/- buttons the output power adjustment is quick and easy to perform, even in 1 W steps.

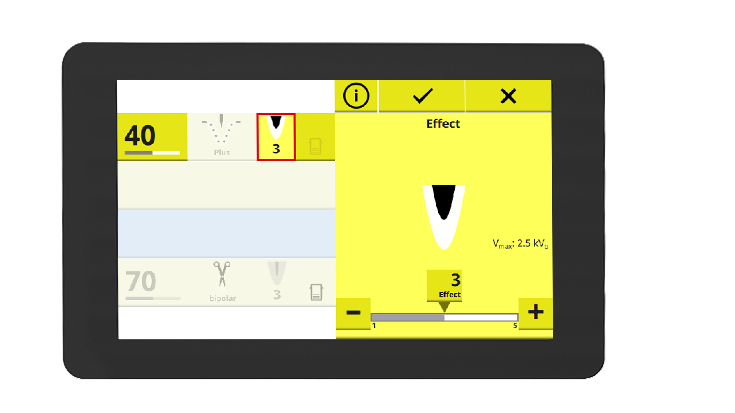

Effect adjustment: The desired effect can be configured individually. Here, the unit automatically ensures an optimal result: If the selected combination of effect and power falls into an illogical range, the power is intelligently corrected.

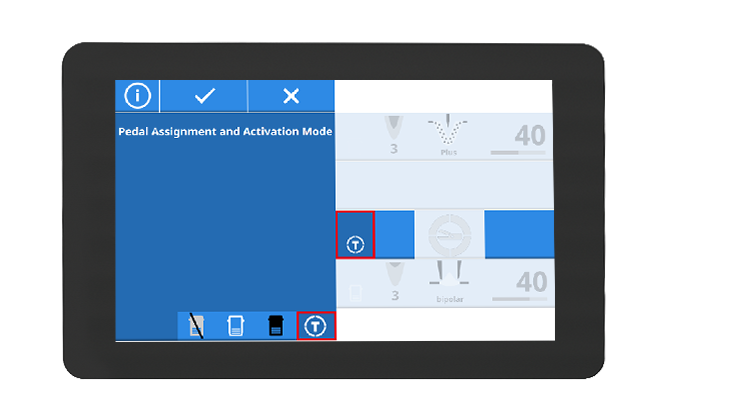

Trigger function: The activated trigger function ensures that the current flows continuously until sealing is completed, without needing to keep the activation button pressed throughout the entire sealing process.

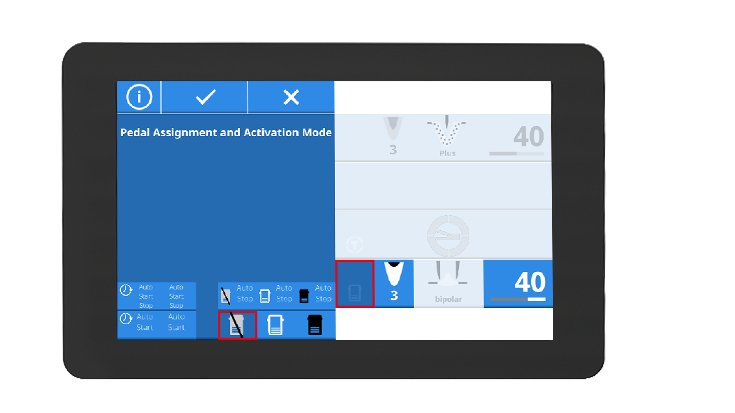

Activation: Easy assignment of activation – whether via a foot switch or an auto-start function.
Our solution offers maximum adaptability through optional software modules which can be enabled depending on the specific medical discipline, area of application, or individual requirements. This way, you obtain exactly the functionalities you require − without unnecessary complexity. These options can be selected and added individually to meet the specific requirements of the application.
Latest bipolar sealing technology.
Building on the proven technology of its predecessor, the maXium®, SealSafe® IQ features the latest generation of bipolar vessel sealing technology. The optimized sealing process offers significant benefits for both the procedure and the patient. Innovative functions such as Bipolate and Trigger enable fast, ergonomic handling. Together with our reusable vessel sealing instruments, SealSafe® IQ provides reliable, efficient, and sustainable vessel sealing.
The Mucosect, Papilla, and Polyp currents are specifically developed, application-specific current types for polypectomy, papillotomy, and endoscopic mucosal resection. These pulsating mixed current modes automatically alternate intermittently between cutting and coagulation to enable precise, effective, and gentle tissue removal.
In contrast to classic monopolar resection, which requires the use of a non-conductive irrigation fluid, bipolar resection uses only electrically conductive saline solution (NaCl) as the irrigation medium. This particularly reduces the risk of a TUR syndrome. The
specifically developed current forms enable precise cutting and coagulation of excess tissue and allow the use of large resection loops for faster work.
Neptun is a bipolar current type for coagulation with liquid support (EHT method = electrohydrothermosation), which is chiefly used in parenchymal surgery (liver, spleen, kidney) with irrigated forceps. The EHT method is characterized by a homogeneous, conservative coagulation effect and rapid procedure.
With the Duo currents, both monopolar outputs can be used simultaneously and, if necessary, in two different surgical fields in
parallel. One example of its use in cardiac surgery is the dissection of the great saphenous vein and the small saphenous vein with minimal coagulation and simultaneous dissection of the mammary vein.

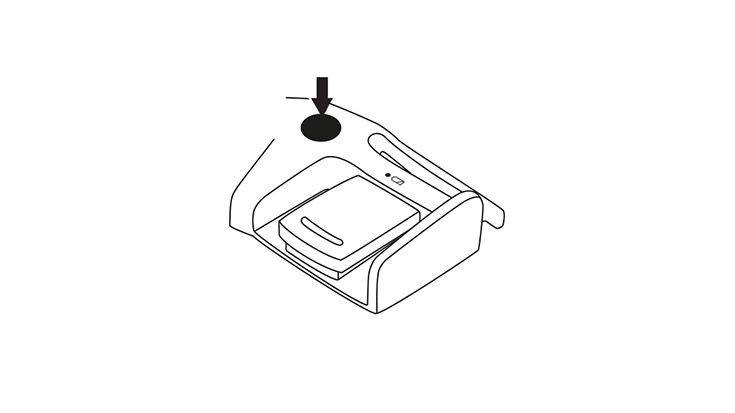

Easy switching between up to five predefined programs from the sterile area. With the SWAP® mode, a program change can be performed from the sterile area using a footswitch or handle, allowing the cutting or coagulation performance to be adapted to the respective surgical situation. No support is required from the non-sterile area.
On the one hand, this option allows two separate double-pedal footswitches to be used in two different locations in the operating room, thereby increasing flexibility. On the other hand, it can be used for robotic applications.

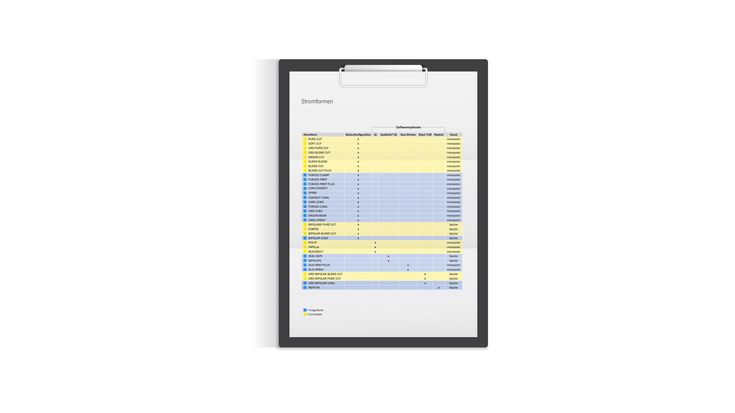

The maXium® smart Q and maXium® smart E HF generators offer 20 current types in the basic configuration for a broad spectrum of surgical applications. By purchasing additional options, up to 12 more current types can be added. This allows the system to be flexibly adapted to different operating room requirements and enables precise selection for a wide range of procedures.
The new high-end generators feature state-of-the-art technology and design to enhance surgical procedures. Learn more about the key features of the maXium® smart E and maXium® smart Q, their functions, and their benefits for patients and operating room teams.

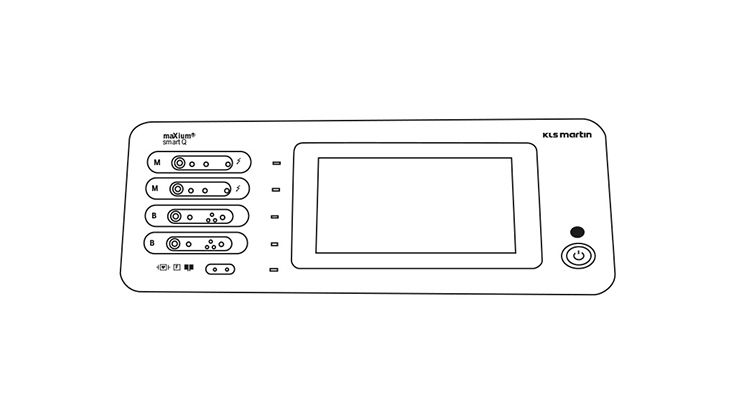

Function: Sockets for various HF accessory instruments (MBB, MMB, MMBB).
Benefit: With up to four sockets available, there is no need for adapters or instrument changes during surgery.
Function: If either the effect or the power is changed, the respective other parameter automatically adjusts itself - provided that it lies outside of a reasonable range.
Benefit: Perfect balance between effect and power with maximum efficiency in every situation.
Function: With the Quick Edit function, all parameters changed in a channel can be confirmed all at once at the end.
Benefit: Quick access and direct adjustment of parameters - all in a single step.
Function: Two double-pedal footswitches can be connected for robot-assisted applications.
Benefit: Compatible with robotic systems for integration into automated operating room environments.

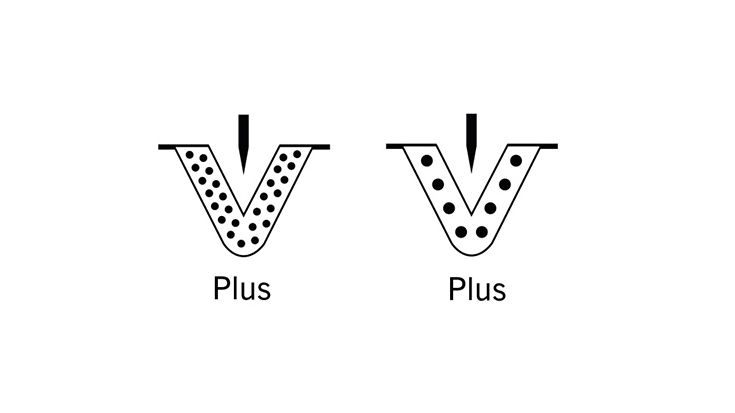

Function: The developed Plus currents are stable and have constant power and performance, regardless of tissue resistance.
Benefit: Owing to a PER (Power Efficiency Ratio) of 99%, the instrument does not even stick in the case of fatty tissue and guarantees consistent cutting and preparation results.
Function: Specifically developed GI currents such as Mucosect, Papilla, and Polyp.
Benefit: GI-specific currents for various applications in the field of flexible endoscopy.
Function: The Plug & Play function of SealSafe® IQ instruments recognizes the connected instrument and automatically sets the current to a suitable default value.
Benefit: No adjustments are necessary, making the unit very simple and easy to use.
Function: In SWAP® mode, the surgeon can switch between up to five different predefined programs.
Benefit: Time savings and independence, as no assistance is required from a non-sterile person when changing programs.
Function: State-of-the-art bipolar vessel sealing technology.
Benefit: SealSafe® IQ ensures an optimized and rapid sealing process with numerous advantages for both the surgeon and the patient.
Function: Our units feature a special activation option for vessel sealing instruments: With the innovative trigger function, a brief tap on the activation button is all it takes to reliably start the sealing process.
Benefit: Focus on the essentials and ergonomic comfort.
Function: The Bipolate function allows vascular sealing instruments to be used with slightly opened jaws for standard bipolar coagulation.
Benefit: No instrument changes during the surgery – for maximum efficiency and workflow continuity.
Function: The SWAP®, Neptun, Bipolar TUR, Gastro, Duo, SealSafe®, and footswitch extension software options can be installed individually as well as retroactively.
Benefit: Discipline-specific device configurations are possible.
Function: The data for each activation are logged.
Benefit: The most important technical surgery data are summarized and can be analyzed as required.
Function: The high-quality 7-inch touchscreen enables direct interaction with the unit.
Benefit: State-of-the-art technology, excellent visibility, and fast, intuitive navigation.

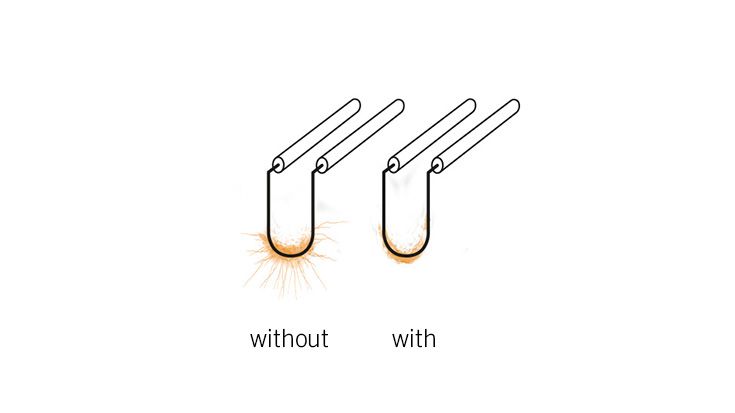

Function: Automatic power adjustment to the required minimum, thus reducing sparking.
Benefit: Patient-friendly application due to consistent cutting quality, regardless of tissue properties and electrode geometry.
Function: Detection of the neutral electrode used and monitoring of adhesion to the patient's skin (only when using split NEs).
Benefit: Reliable monitoring of the neutral electrode ensures maximum safety for patients and users.

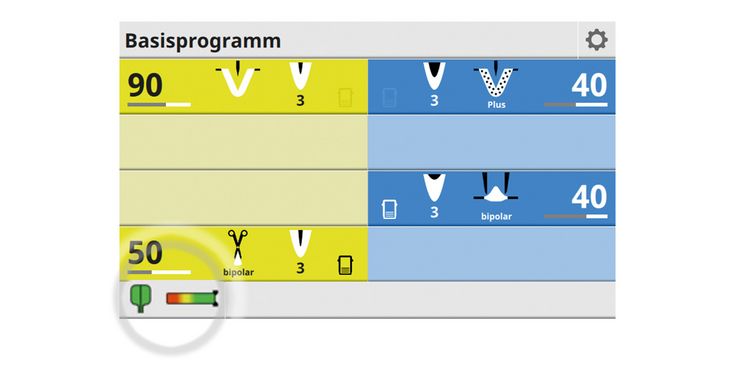

The Patient Control System (PCS) and the innovative neutral electrode indicator guarantee maximum safety for the patient
and user. The bar indicator provides feedback on the current NE status at all times - another plus in terms of safety. Only split neutral electrodes can be monitored with the PCS. When making your selection it is possible to choose between different neutral electrodes. When selecting a neutral electrode for newborns or children, various restrictions are implemented on the unit:
Thanks to their versatile range of applications, the new smartLine generators are true all-rounders in high-frequency technology. They support a broad spectrum of surgical specialties, ranging from general and visceral surgery to gynecology, urology, and gastroenterology, as well as ENT surgery. In orthopedics and traumatology, neurosurgery, and cardiovascular surgery, they also deliver outstanding precision and reliability. Their field of application is further extended by thoracic surgery, enabling smartLine generators to cover virtually all relevant surgical disciplines.

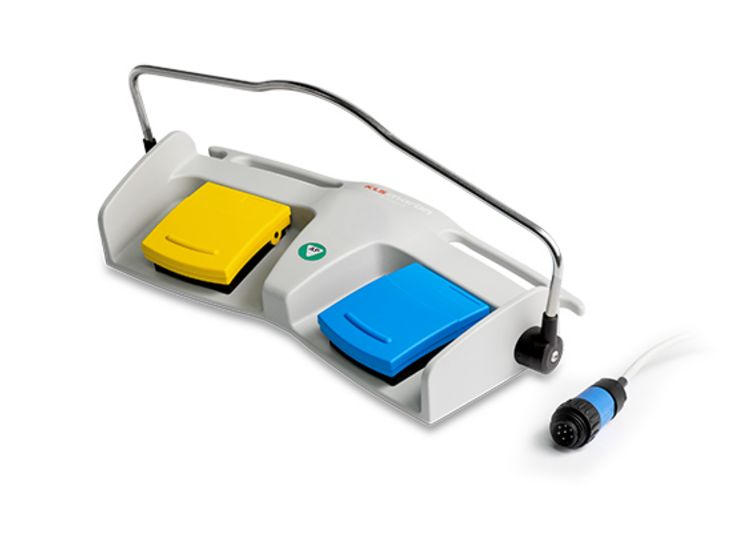

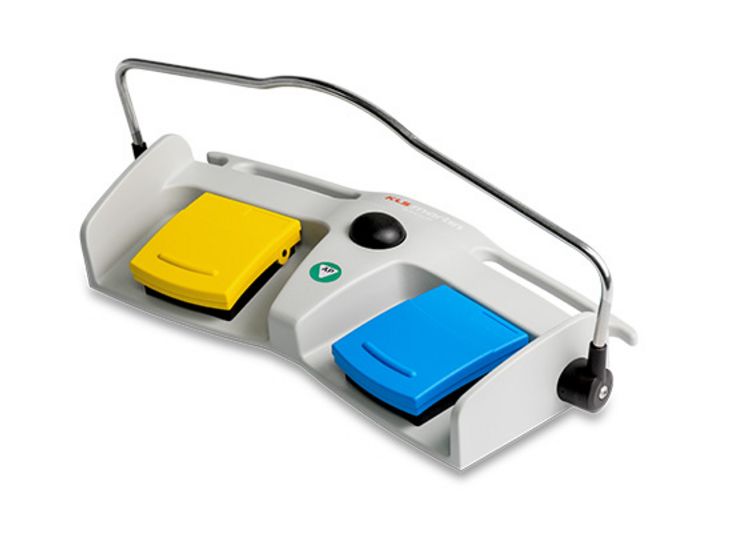

For use with these generators, only special dual‑pedal footswitches are available: one with a SWAP® function and one without. A new single‑pedal footswitch is not required. The existing model remains fully compatible and can continue to be used without restriction.
With accessories precisely matched to our generators, you are perfectly equipped for everyday use in the operating room. You can find out more about our extensive range of accessories in our HF accessories catalog.
To the HF accessories catalog
Our bipolar forceps with non-stick effect and a revolutionary ergonomic design.
The latest generation of forceps allows for the precise coagulation of vessels - accurately to the point. The large choice of models, the universal connection as well as the ergonomic handle, make the nonStick-red forceps indispensable aids in the daily OR environment.
Our bipolar forceps with integrated irrigation – for the toughest requirements.
The coagulation site is irrigated via the irrigation channel integrated into the forceps handle and to which one or two Luer Lock tubes can be connected. A continuous supply of irrigation fluid helps to greatly reduce the tissues adhesion.
The ”Neptun“ current type of the maXium® HF generator was developed specifically for fluid-assisted HF coagulation (EHT = electrohydrothermosation) of the nonStick flush bipolar irrigation forceps.
Our bipolar scissors for open surgery.
An essential benefit of marCut® scissors is provided by their special design: The two scissor blades are electrically insulated from each other by a ceramic element. The special hardened surface of the scissor blade provides for a consistently sharp cutting edge, which can be re-sharpened several times.
For reliable holding and separation of tissue - always with a view of the entire operating field.
The field of laparoscopy requires a multitude of special bipolar instruments for minimally invasive applications. Fast and reliable hemostasis is of great significance. With the marLap system, we provide a brilliant answer to this.
Premium quality electrode handpieces for your daily work in the OR
Monopolar electrode handpieces are indispensable in electrosurgery. Combined with an active electrode they are used to cut, dissect, and coagulate. With the electrode handpieces we offer you a device designed to fulfill today's ergonomic demands.
To provide you with the right return electrode for every application in the monopolar field, we offer you a variety of different return electrodes. From the split single return electrode to special return electrodes for newborns and infants.
KLS Martin – your competent partner in modern argon-supported surgery.
We offer a large selection of rigid and flexible probes for open and endoscopic argon surgery.
smartOne® VAC handles with integrated smoke evacuation ensure a clear view of the operating field at all times. The telescopic function gives the surgeon maximum flexibility with an ergonomic design. The unique smoke gas electrodes can be used in numerous indications.
The smartOne® handles in ergonomic design in the variants: Hand activation via push button or rocker switch. The 3-pin plug allows a versatile use. The teflon-coated electrodes prevent the tissue from sticking and thus reduce the operating time.
A wide range of different shapes and lengths with integrated hexagon guarantee the highest level of safety in the operating theatre. Due to form rings, the electrodes can be easily exchanged. The Teflon coating prevents tissue from sticking to the electrode and reduces the intraoperative cleaning effort of the OR staff.
The maXium® smart Cart exhibits a compact and ergonomic design to securely accommodate the entire equipment.
The maxium® smart Cart not only offers room for an electrosurgery device, but also for an argon beamer as well as a smoke evacuation unit.
