Implants | Hand

Plates and screws

In hand surgery, we not only offer plate osteosynthesis systems for treating common indications such as, for example, distal radius fractures, but also offer products which help to achieve good results in difficult non-everyday situations. This is exemplified with products such as Recos® for shortening the ulna or radius correction osteotomy as well as the FlowerPlate for mediocarpal partial arthrodesis.
Our goal is to simplify hand surgery operations with intelligent system solutions in order to ensure optimal surgical outcomes for the benefit of the patient. Together with renowned groups of authors we translate new ideas into innovative products and are constantly enhancing them.
Based on the principle of multidirectional locking plate osteosynthesis,
our goal was to treat nearly all types of distal radius
fractures with an easy-to-use and clearly structured system.

We see ourselves as genuine partners – both for everyday challenges and for special challenges.
Download instructions for use

Plates

The requirement for designing the new generation of osteosynthesis products for hand surgery was to create a complete portfolio of anatomically pre-shaped plates, but nonetheless reduced to the essentials. As an example, this was achieved by employing universal drill holes for free placing of standard or fixed-angle screws. Other characteristics, such as surface treatments adapted to the indication field round off the high quality portfolio - convince yourself!

Handsurgery - Implants hand screws Ixos

Screws

The latest generation of smartDriveR screws provides both standard and locking screws with double threads for the first time. In addition, all screws are equipped with atraumatic screw tip. Of course, the smartDriveR screws
also exhibit the T8 with self-retaining function that has been established for decades. The product range is complemented by locking pins.


Handsurgery - Implants hand instruments Ixos

Instruments

We have made it our objective to design color-coded instruments which are easy and efficient to use. As a result, the radius plate system consists of only four instruments.
Another concern was the development of instruments especially designed to suit the anatomy of the hand, for example, the reduction forceps illustrated on the right.

Handsurgery - Implants hand storage Linos

Storage System

In designing the storage tray the focus was not only on easy handling but also on optimization of reprocessing capability, in order to meet the requirements of all those involved. Apart from the option of conventional storage, the entire LINOS system is also available
with sterile packed implants.

Our Plates and screws

Phalanges and Metacarpals

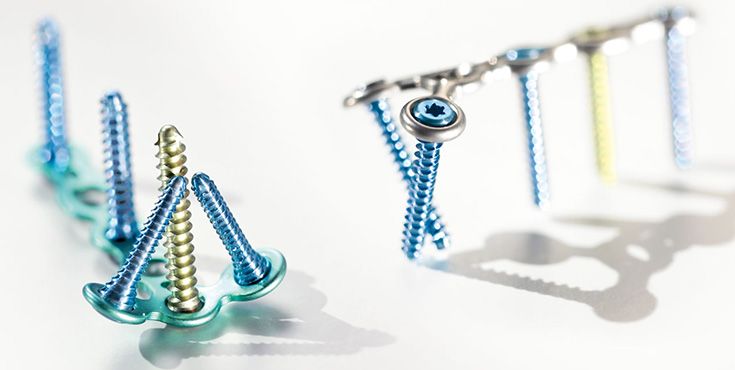

Handsurgery - Linos

Linos

Multidirectional locking hand fracture system

Indications:

Treatment and internal fixation of fractures of the distal, middle and proximal phalanges as well as the metacarpals, especially of

  • Transverse, oblique and spiral fractures and fractures near joints with and without joint involvement
  • Shaft, comminuted and luxation fractures
  • Avulsion fractures
  • Arthrodeses and reconstructive procedures in the hand area


Features and Benefits:

  • Reduced but nonetheless complete range of plates
  • 2 profile thicknesses available (0,8 mm/ 1,2 mm)
  • Color codation according to profile
  • Anatomical pre-shaped design ensures high strength due to the reduced amount of bending
  • Rounded, atraumatic contour to protect the soft tissue
  • Universal plate hole geometry
  • Standard and locking screws can be used in every plate hole
  • Flexible with regard to choice of screw type
  • Screw diameters 1.5/2.0/2.3 mm
  • Free combinability leads to a best possible treatment option for every fracture
  • Compression hole and elongated K-wire hole in every plate for a secure closure of the fracture gap

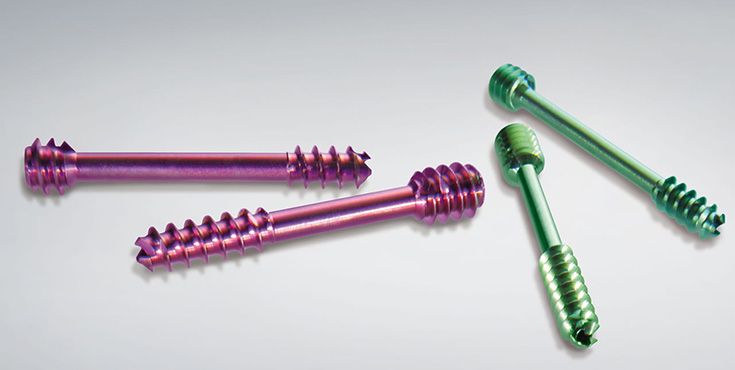

Handsurgery - HBS 2

HBS 2

Cannulated headless screws for the treatment of fractures and pseudoarthroses of small bones

Indications:

HBS2 screws are used for the treatment of intraarticular and extraarticular fractures and pseudoarthroses of smaller bones and bone fragments as well as for arthrodeses on small joints, especially in the scope of

  • scaphoid fractures and scaphoid pseudoarthroses
  • proximal pole fractures of the scaphoid
  • DIP arthrodeses
  • fractures of the processus styloideus radii
  • proximal radial head fractures
  • metacarpal fractures
  • metatarsal fractures
  • fractures of the processus styloideus ulnae

Features and Benefits:

  • Color-coded Screws
  • Due to the different thread pitches of the proximal and distal thread, the screw can generate interfragmental compression
  • Thread length variability – Screws available in short and long thread
  • Self-drilling / self-tapping to shorten the surgical procedure
  • Increased K-wire diameter for a better guidance and higher stability
  • Reverse cutting distal thread for easy screw explantation
  • Color coded and intuitive instruments which are arranged according to the sequence of use in surgery
  • Sophisticated storage module in honey comb design
Handsurgery - Canos

Canos

Cannulated Screw System 2.3/2.7/3.5 mm

Indications:

The Cannulated Screw System CANOS is used for treating fractures of small bones, particularly

  • Bennett’s fractures
  • Radial head fractures
  • Fractures of the first metatarsal (MT I)
  • Metacarpal fractures (conditional)
  • Minor bony avulsions of the radial or ulnar epicondyle of the humerus
  • Displacement osteotomies of the first metatarsal (MT I)
  • Glenoid fractures

Features and Benefits:

  • Available in different diameters: 2.3/2.7/3.5 mm
  • Available with full and partial thread
  • Color-coded screws to differentiate between full and partial thread
  • Cannulated screws for use with K-wire
  • Low thread pitch enables a fast insertion with minimal effort
  • Low screw head diameter allows to recess screw head, flush with bone surface
  • Color-coded instrument set, specially designed for minimally invasive applications

Carpus

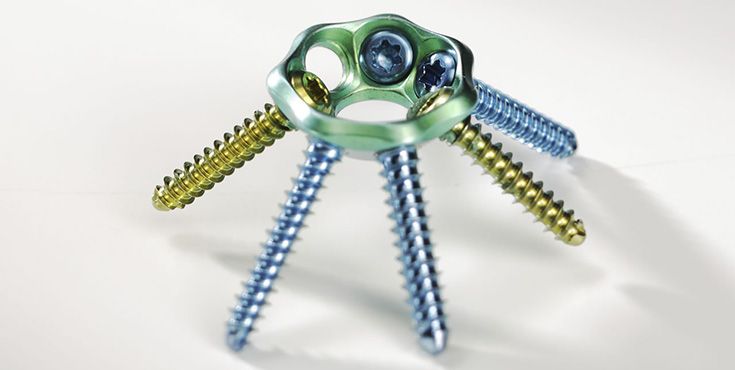

Handsurgery - FlowerPlate

FlowerPlate

For Mediocarpal Partial Arthrodesis

Indications:

Treatment of degenerative or post-traumatic osteoarthritis of the carpus

  • FCF fusion
  • STT fusion
  • SLC fusion
  • CMC fusion
  • SC fusion

Features and Benefits:

  • Small plate size and delicate, concave shape prevents impingement at the dorsal edge of the radial bone and allows positioning below bone level
  • Low plate profile reduces the amount of bone to be removed
  • Anatomically pre-shaped plate design ideally matched to the carpal bones, thus enabling accurate positioning
  • Rounded, atraumatic plate contour for optimal embedding in soft tissue with maximum preservation
  • Integrated center hole allows the introduction of additional cancellous bone
  • To be fixed with 2.0 mm or 2.3 mm Standard / Locking Screws
  • Practical sterile kit including positioning instrument enables easy positioning and orientation of the plate
Handsurgery - HBS 2

HBS 2

Cannulated headless screws for the treatment of fractures and pseudoarthroses of small bones

Indications:

HBS2 screws are used for the treatment of intraarticular and extraarticular fractures and pseudoarthroses of smaller bones and bone fragments as well as for arthrodeses on small joints, especially in the scope of

  • scaphoid fractures and scaphoid pseudoarthroses
  • proximal pole fractures of the scaphoid
  • DIP arthrodeses
  • fractures of the processus styloideus radii
  • proximal radial head fractures
  • metacarpal fractures
  • metatarsal fractures
  • fractures of the processus styloideus ulnae

Features and Benefits:

  • Color-coded Screws
  • Due to the different thread pitches of the proximal and distal thread, the screw can generate interfragmental compression
  • Thread length variability – Screws available in short and long thread
  • Self-drilling / self-tapping to shorten the surgical procedure
  • Increased K-wire diameter for a better guidance and higher stability
  • Color coded and intuitive instruments which are arranged according to the sequence of use in surgery
  • Sophisticated storage module in honey comb design

Radius und Ulna

Handsurgery - Ixos

Ixos®

Multidirectional Locking Plate System for radius fractures

Indicators:

Fixing intra- and extra-articular acute fractures of the distal radius, particularly

  • Type A2 Colles fractures
  • Type A3 fractures
  • Type B1 fractures
  • Type B2 Barton fractures
  • Type B3 Smith or reversed Barton fractures
  • Type C1 fractures
  • Type C2 fractures
  • Type C3 fractures
  • osteotomies of the distal radius

Features and Benefits:

  • Complete implant portfolio (palmar, dorsal, dorso-lateral, ulnar plates)
  • Anatomically pre-contoured plates
  • Rounded plate contour to prevent soft tissue irritations
  • K-Wire holes for temporary plate fixation
  • Dotize® surface treatment
  • Color-coded smartDrive Screws Ø 2.5 mm - Standard or locking
  • Color-coded locking Pins Ø 2.0 mm

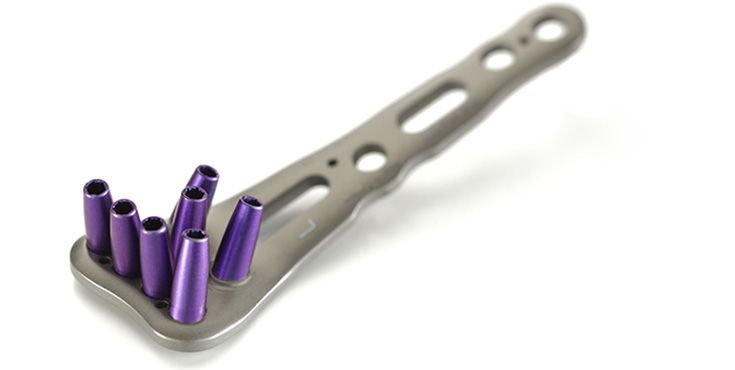

Handsurgery - Recos Radius

Recos®

Radius reconstruction system

Indications:

The RECOS® radius reconstruction plates are mainly used for the fixation of improperly healed radius fractures:

  • Type A2 A3 acc. to AO classification
  • Type A3.2 acc. to AO classification

Features and Benefits:

  • Anatomical, atraumatic plate geometry for best possible embedding in soft tissue
  • Plate design and screw hole angulation specially adapted to the needs of radial corrections for optimized distal reduction and support after the osteotomy thanks to ideal screw positioning
  • Watershed-line concept enables extremely distal plate positioning
  • Color-coded drill sleeves for unambiguous use of the right drill
  • Color-coded smartDrive Screws Ø 2.5 mm or Ø 3.0 mm - Standard or locking
Handsurgery - Recos Ulna

Recos®

Ulna Shortening System

Indications:

The RECOS® ulna shortening plates are mainly used in case of constitutional and post-traumatic, clinically relevant ulna impaction syndrome.

Features and Benefits:

  • Pre-angled distal screw holes for best possible anchorage in the bone
  • Two elongated holes for a standardized, secure closure of osteotomy gaps up to 10 mm
  • Color-coded drill sleeves for unambiguous use of the right drill
  • Bridge plate with recess in the osteotomy zone to prevent contractions between saw blade and plate and for a safe transection of the periosteum
  • Color-coded smartDrive Screws Ø 2.5 mm or Ø 3.0 mm - Standard or locking
Handsurgery - HBS 2

HBS 2

Cannulated headless screws for the treatment of fractures and pseudoarthroses of small bones

Indications:

HBS2 screws are used for the treatment of intraarticular and extraarticular fractures and pseudoarthroses of smaller bones and bone fragments as well as for arthrodeses on small joints, especially in the scope of

  • scaphoid fractures and scaphoid pseudoarthroses
  • proximal pole fractures of the scaphoid
  • DIP arthrodeses
  • fractures of the processus styloideus radii
  • proximal radial head fractures
  • metacarpal fractures
  • metatarsal fractures
  • fractures of the processus styloideus ulnae

Features and Benefits:

  • Color-coded Screws
  • Due to the different thread pitches of the proximal and distal thread, the screw can generate interfragmental compression
  • Thread length variability – Screws available in short and long thread
  • Self-drilling / self-tapping to shorten the surgical procedure
  • Increased K-wire diameter for a better guidance and higher stability
  • Color coded and intuitive instruments which are arranged according to the sequence of use in surgery
  • Sophisticated storage module in honey comb design
Handsurgery - Canos

Canos

Cannulated Screw System 2.3/2.7/3.5 mm

Indications:

The Cannulated Screw System CANOS is used for treating fractures of small bones, particularly

  • Bennett’s fractures
  • Radial head fractures
  • Fractures of the first metatarsal (MT I)
  • Metacarpal fractures (conditional)
  • Minor bony avulsions of the radial or ulnar epicondyle of the humerus
  • Displacement osteotomies of the first metatarsal (MT I)
  • Glenoid fractures

Features and Benefits:

  • Available in different diameters: 2.3/2.7/3.5 mm
  • Available with full and partial thread
  • Color-coded screws to differentiate between full and partial thread
  • Cannulated screws for use with K-wire
  • Low thread pitch enables a fast insertion with minimal effort
  • Low screw head diameter allows to recess screw head, flush with bone surface
  • Color-coded instrument set, specially designed for minimally invasive applications
